Modul
Basic WC system for wall-hung toilets
Concealed module for washbasins
discontinued product
Art. Nº: H8956520000001
The concealed module WC system with a monoblock steel frame suitable for plasterboard structure installation is designed for wall-hung toilets with an installation spacing of 180 and 230 mm and wall-hung toilets with a built-in bidet shower with a water supply hose. The module is anchored to the back wall and to the floor with the possibility of adjustable frame height and is for dry installation; the load-carrying capacity of the frame structure is 400 kg. The product also offers an anti-dew insulated cistern, a quiet operation of the filling valve, a DN 90/110 drain elbow and various flushing options 2/4 litres, 3/4.5 litres or 3/6 litres. Note: the concealed module flushing is factory-set to 3/6 litres.
Flushing type: Dual flush 2/4 litres, Dual flush 3/4.5 litres, Dual flush 3/6 litres
Operating plate position: Frontal
Suitable for: Wall-hung toilet
Lyra plus
490 x 360 x 350
Deep by Jika
510 x 360 x 345
510 x 360 x 365
Mio
530 x 360 x 350
530 x 360 x 360
530 x 360 x 368
Mila
610 x 415 x 415
250 x 120 x 160
259 x 169 x 110
250 x 23 x 160

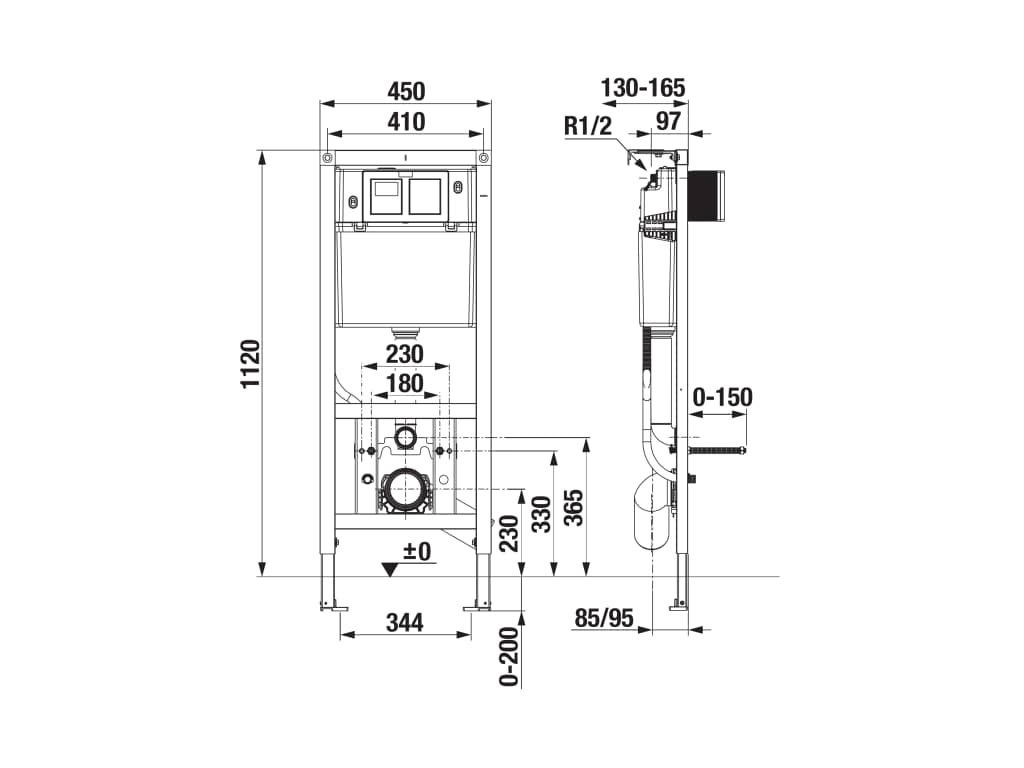

Download the CAD (2D, 3D) files of this product in different formats.
3D
500 x 1320
525 x 1460
525 x 1120
500 x 1120
